| project | General parameters | Remark | |
| Rated Capacity | Nominal capacity | 50Ah | 0.2C5A standard discharge after standard charge |
| Minimum capacity | 50Ah | ||
| Normal voltage | 3.2V | working voltage | |
| Internal resistance | ≤0.65mΩ | Internal resistance measured at AC 1KHZ after charging 50% This measure must use new batteries with less than 5 cycles within one week of shipment | |
| size | Thickness/Thickness:Max 24.5mm | initial size | |
| Width/Width: Max 140.5mm | |||
| Height/Height: Max 160.5mm | |||
| weight | 1.15kg | APPROX | |
| Standard charge | Continuous current: 0.33C5A Continuous voltage: 3.65V Cut-off current: 0.02C5A | Charge time: Approx3.5h | |
| fast charging | Continuous current: 1C5A Continuous voltage: 3.65V Cut-off current: 0.01C5A | Charge time : Approx1.5h@≧10℃ | |
| Standard discharge | Continuous current: 0.33C5A Cut-off voltage: 2.5V | 16.5A | |
| Maximum discharge continuous current | Continuous current 2C5A Cut-off voltage: 2.5V | 100A@≧0℃ | |
| volume specific energy | 295WH/L | APPROX | |
| mass specific energy | 139WH/KG | APPROX | |

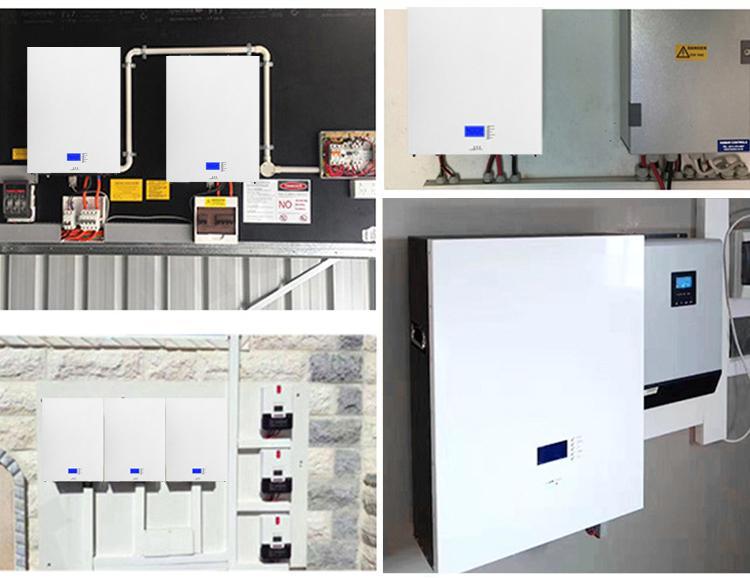

Application
Packing

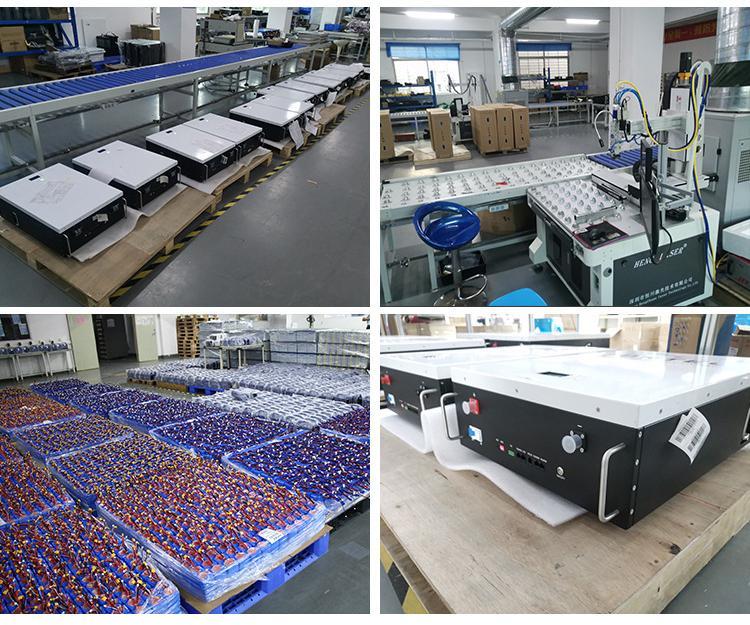

Factory
